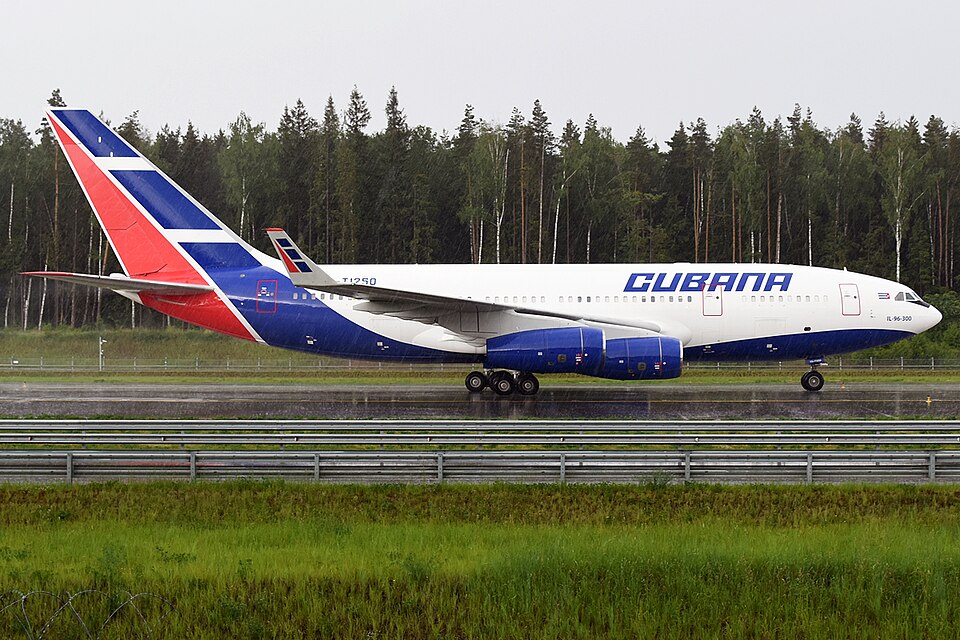

Ilyushin Il-96-300
Ilyushin · IL96
Russian widebody quad-jet. The presidential fleet operates a VIP version. Very few in commercial service.
Heavy-category jet with 4 engines that cruises at about 465 kts. Has a 160 kt approach speed, coming in fast. Requires about 15.8k ft of field length for takeoff.
4x JetHeavyRECAT BFL410 ceilingILS capable
Performance
| Parameter | Value |
|---|---|
| Engines | 4 x Jet |
| Weight class | Heavy (H) |
| RECAT-EU category | B (Upper heavy) |
| Service ceiling | 41,000 ft (FL410) |
| Max climb rate | 2,000 fpm |
| Max descent rate | 3,000 fpm |
Speed envelope
Speeds are approximate true airspeed (TAS). At cruise altitude, the Mach number is the governing limit where shown.
| Parameter | Value |
|---|---|
| Minimum speed | 145 kts |
| Landing speed | 160 kts |
| Cruise speed | ~465 kts TAS |
| Maximum speed | ~485 kts TAS |
Runway requirements
Field lengths used in the simulation for takeoff/landing calculations.
| Parameter | Value |
|---|---|
| Takeoff field length | 15,798 ft / 2.60 nm / 4,815 m |
| Landing field length | 12,152 ft / 2.00 nm / 3,704 m |
Equipment
| Capability | Status |
|---|---|
| ILS approaches | Yes |
| Fix navigation | Yes |
| SRS category | 3 |
Where you'll see it
The Ilyushin Il-96-300 is a widebody aircraft. While less common in modern fleets, you'll still encounter this type in center airspace on long-haul routes.
