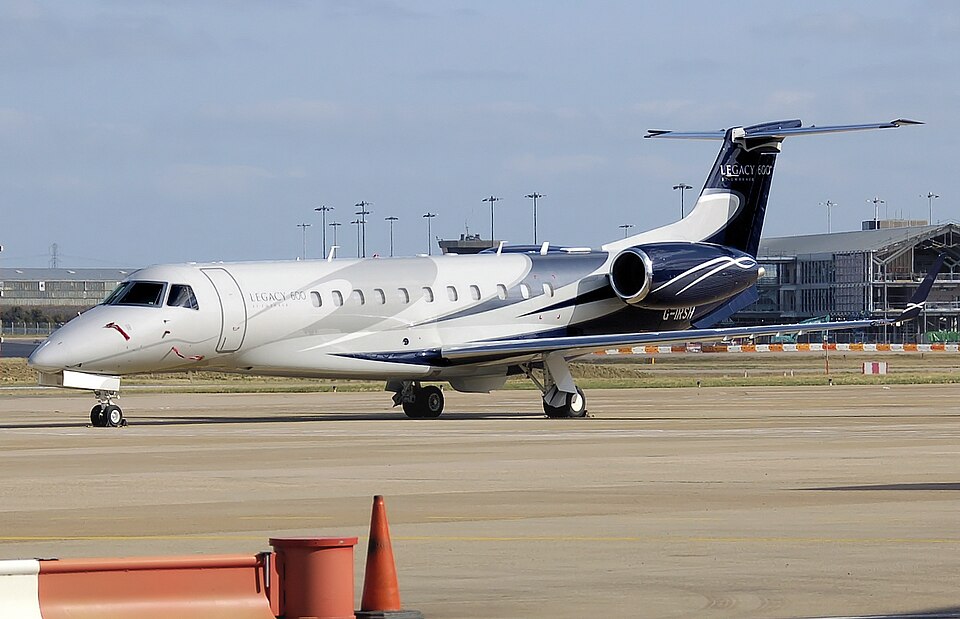

Embraer EMB-135BJ Legacy 600/650
Embraer · E35L
Medium-category jet with 2 engines. Cruises at Mach 0.76. Climbs well at 3,500 fpm.
2x JetMediumRECAT EFL370 ceilingILS capable
Performance
| Parameter | Value |
|---|---|
| Engines | 2 x Jet |
| Weight class | Medium (M) |
| RECAT-EU category | E (Lower medium) |
| Service ceiling | 37,000 ft (FL370) |
| Max climb rate | 3,500 fpm |
| Max descent rate | 3,000 fpm |
Speed envelope
Speeds are approximate true airspeed (TAS). At cruise altitude, the Mach number is the governing limit where shown.
| Parameter | Value |
|---|---|
| Minimum speed | 125 kts |
| Landing speed | 130 kts |
| Cruise speed | M0.76 (~320 kts TAS) |
| Maximum speed | ~470 kts TAS |
Runway requirements
Field lengths used in the simulation for takeoff/landing calculations.
| Parameter | Value |
|---|---|
| Takeoff field length | 9,600 ft / 1.58 nm / 2,926 m |
| Landing field length | 6,866 ft / 1.13 nm / 2,093 m |
Equipment
| Capability | Status |
|---|---|
| ILS approaches | Yes |
| Fix navigation | Yes |
| SRS category | 3 |
| LAHSO category | 7 |
Where you'll see it
The Embraer EMB-135BJ Legacy 600/650 is a business jet that operates worldwide. You'll see corporate traffic like this in most center and approach airspaces, often requesting direct routing and higher altitudes.
