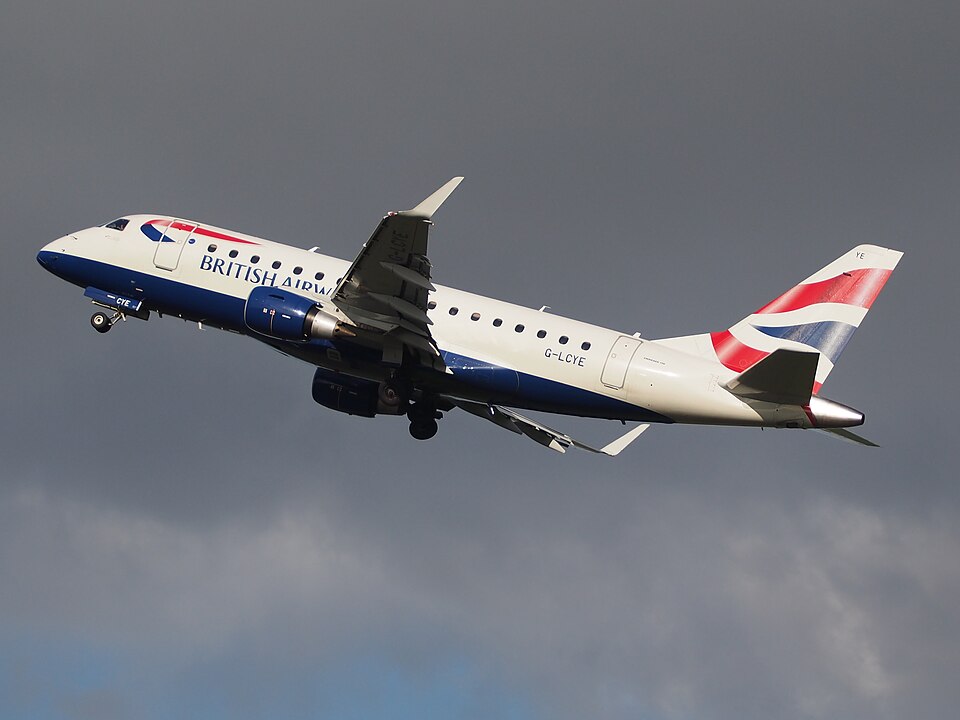

Embraer 170/175
Embraer · E170
First of the E-Jet family that changed regional aviation. LOT Polish Airlines was the launch customer in 2004.
A twin-engine jet in the large category that cruises at about 475 kts.
2x JetLargeRECAT EFL410 ceilingILS capable
Performance
| Parameter | Value |
|---|---|
| Engines | 2 x Jet |
| Weight class | Large (L) |
| RECAT-EU category | E (Lower medium) |
| Service ceiling | 41,000 ft (FL410) |
| Max climb rate | 3,400 fpm |
| Max descent rate | 3,000 fpm |
Speed envelope
Speeds are approximate true airspeed (TAS). At cruise altitude, the Mach number is the governing limit where shown.
| Parameter | Value |
|---|---|
| Minimum speed | 110 kts |
| Landing speed | 120 kts |
| Cruise speed | ~475 kts TAS |
| Maximum speed | M0.82 (~481 kts TAS) |
Runway requirements
Field lengths used in the simulation for takeoff/landing calculations.
| Parameter | Value |
|---|---|
| Takeoff field length | 10,329 ft / 1.70 nm / 3,148 m |
| Landing field length | 7,291 ft / 1.20 nm / 2,222 m |
Equipment
| Capability | Status |
|---|---|
| ILS approaches | Yes |
| Fix navigation | Yes |
| SRS category | 3 |
| LAHSO category | 7 |
Where you'll see it
The Embraer 170/175 flies with KLM, Aeromexico, and S7 Airlines among others. You'll encounter it regularly in Amsterdam, Mexico City, Moscow, Warsaw airspace.
