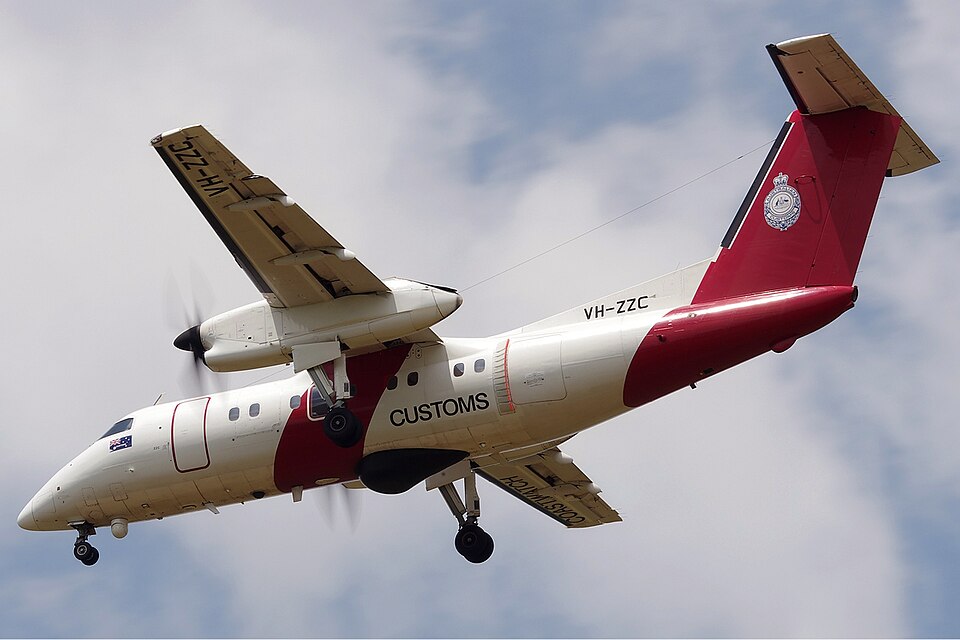

Bombardier Dash 8-200
Bombardier · DH8B
A twin-engine turboprop in the large category. Is limited to FL250. Cruises at about 260 kts. Is vulnerable to wake turbulence from heavier types.
2x TurbopropLargeRECAT FFL250 ceilingILS capable
Performance
| Parameter | Value |
|---|---|
| Engines | 2 x Turboprop |
| Weight class | Large (L) |
| RECAT-EU category | F (Light) |
| Service ceiling | 25,000 ft (FL250) |
| Max climb rate | 1,800 fpm |
| Max descent rate | 1,500 fpm |
Speed envelope
Speeds are approximate true airspeed (TAS). At cruise altitude, the Mach number is the governing limit where shown.
| Parameter | Value |
|---|---|
| Minimum speed | 75 kts |
| Landing speed | 120 kts |
| Cruise speed | ~260 kts TAS |
| Maximum speed | M0.46 (~300 kts TAS) |
Runway requirements
Field lengths used in the simulation for takeoff/landing calculations.
| Parameter | Value |
|---|---|
| Takeoff field length | 4,861 ft / 0.80 nm / 1,482 m |
| Landing field length | 4,861 ft / 0.80 nm / 1,482 m |
Equipment
| Capability | Status |
|---|---|
| ILS approaches | Yes |
| Fix navigation | Yes |
| SRS category | 3 |
| LAHSO category | 4 |
Where you'll see it
The Bombardier Dash 8-200 is a regional turboprop used on short-haul passenger services. Common at smaller airports and on feeder routes into major hubs.
