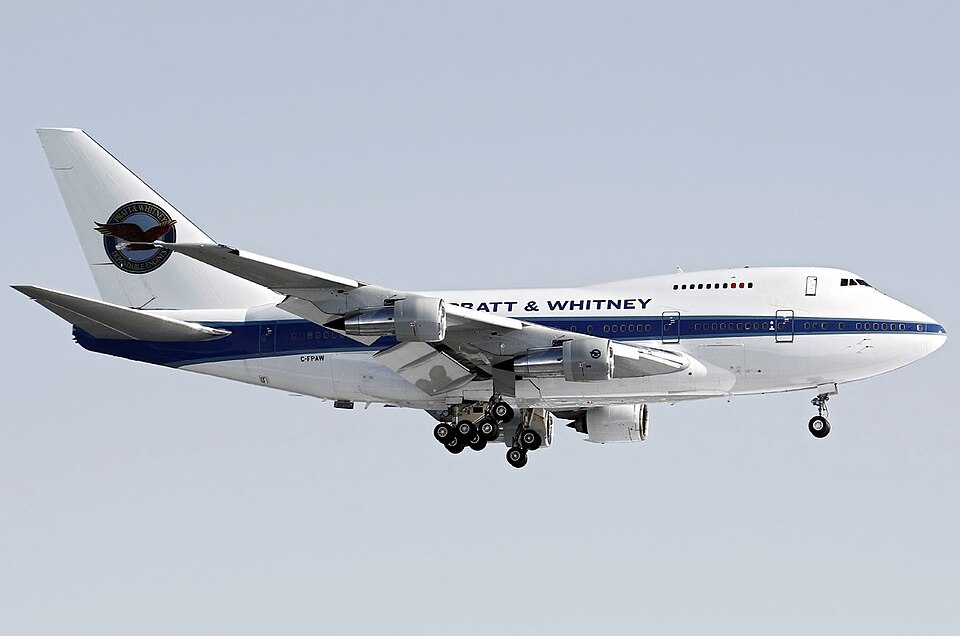

Boeing 747SP
Boeing · B74S
A heavy four-engine jet. Cruises at Mach 0.88. Approaches at 150 kts. Requires about 17.6k ft of field length for takeoff.
4x JetHeavyRECAT BFL450 ceilingILS capable
Performance
| Parameter | Value |
|---|---|
| Engines | 4 x Jet |
| Weight class | Heavy (H) |
| RECAT-EU category | B (Upper heavy) |
| Service ceiling | 45,000 ft (FL450) |
| Max climb rate | 3,000 fpm |
| Max descent rate | 3,000 fpm |
Speed envelope
Speeds are approximate true airspeed (TAS). At cruise altitude, the Mach number is the governing limit where shown.
| Parameter | Value |
|---|---|
| Minimum speed | 135 kts |
| Landing speed | 150 kts |
| Cruise speed | M0.88 (~505 kts TAS) |
| Maximum speed | M0.92 (~526 kts TAS) |
Runway requirements
Field lengths used in the simulation for takeoff/landing calculations.
| Parameter | Value |
|---|---|
| Takeoff field length | 17,620 ft / 2.90 nm / 5,371 m |
| Landing field length | 9,722 ft / 1.60 nm / 2,963 m |
Equipment
| Capability | Status |
|---|---|
| ILS approaches | Yes |
| Fix navigation | Yes |
| SRS category | 3 |
| LAHSO category | 9 |
Where you'll see it
The Boeing 747SP is a widebody aircraft. While less common in modern fleets, you'll still encounter this type in center airspace on long-haul routes.
