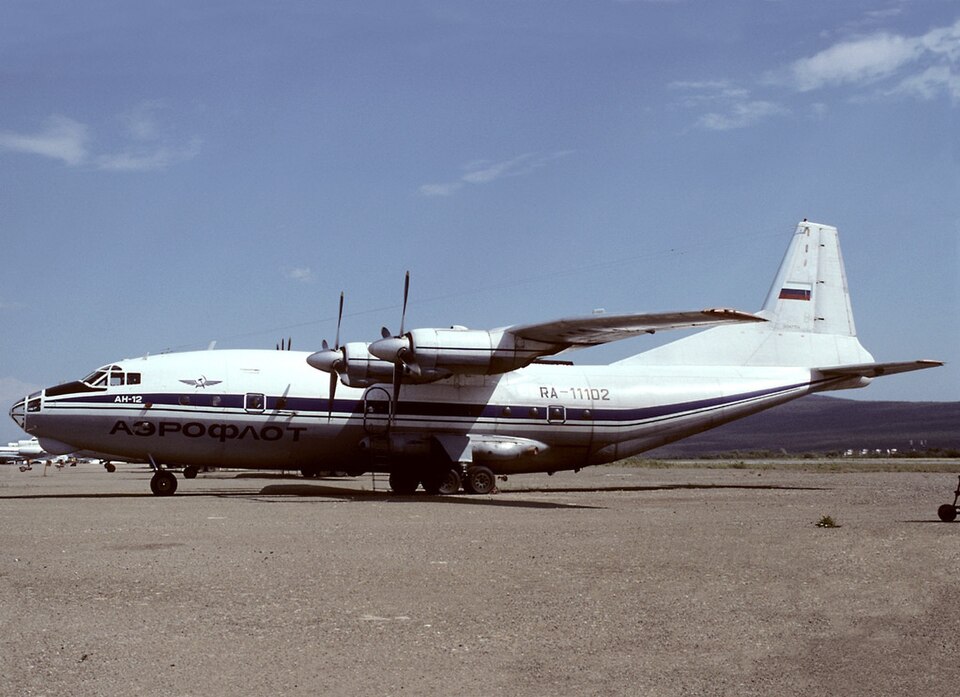

Antonov 12
Antonov · AN12
Soviet military transport still flying cargo operations in Africa and Central Asia. Unmistakable four-turboprop profile.
Large-category turboprop with 4 engines. Cruises at about 361 kts. Has four engines for distinctive handling.
4x TurbopropLargeRECAT DFL390 ceilingILS capable
Performance
| Parameter | Value |
|---|---|
| Engines | 4 x Turboprop |
| Weight class | Large (L) |
| RECAT-EU category | D (Upper medium) |
| Service ceiling | 39,000 ft (FL390) |
| Max climb rate | 1,500 fpm |
| Max descent rate | 1,500 fpm |
Speed envelope
Speeds are approximate true airspeed (TAS). At cruise altitude, the Mach number is the governing limit where shown.
| Parameter | Value |
|---|---|
| Minimum speed | 115 kts |
| Landing speed | 130 kts |
| Cruise speed | ~361 kts TAS |
| Maximum speed | ~420 kts TAS |
Runway requirements
Field lengths used in the simulation for takeoff/landing calculations.
| Parameter | Value |
|---|---|
| Takeoff field length | 9,114 ft / 1.50 nm / 2,778 m |
| Landing field length | 9,114 ft / 1.50 nm / 2,778 m |
Equipment
| Capability | Status |
|---|---|
| ILS approaches | Yes |
| Fix navigation | Yes |
| SRS category | 3 |
Where you'll see it
The Antonov 12 is a military transport aircraft. You'll occasionally see military traffic transiting through en-route airspace.
